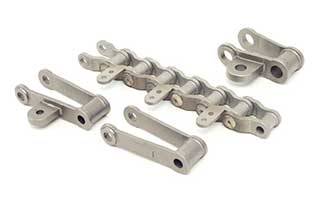

Pintle Chain, various styles available (not all styles shown). Tooling by Acra Cast (parts available to any customer). Common stainless alloys that these chains are ordered in: 304, 309, 316, and 330 (customer may select alloy of choice). Typical applications: High temperature brazing, sintering, heat treatment furnaces. Chain available either assembled or as loose links, with or without attachments.
Various parts used in material handling applications such as overhead power-and-free conveyor systems and automatic tool changing systems. Various alloys but typically provided in 8620, 8630, 8640, and 4140 low alloy steels in annealed or hardened condition.

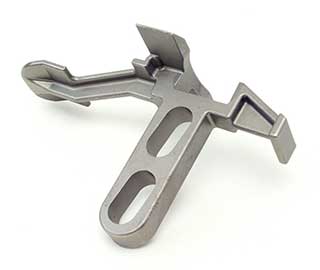

Complex casting used in power-and-free conveyor systems. Alloy: 1075 carbon steel, Weight: 5.25 lb.

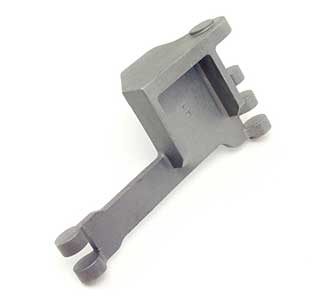

Roller Hinge, Door Assembly, Hangar Deck, US Navy. Alloy: 8630, Weight: 7.25 lb. This part was converted to a casting from a welded fabrication. Typical alloys for this type of application are 1020, 8620, 8630 and 4140 steel.

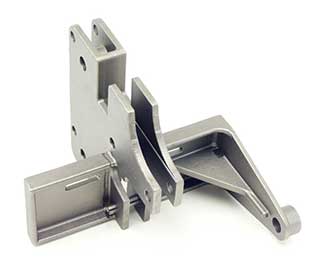

Casting illustrating the complex geometries and near-net shape capability of investment casting. This part was converted to a casting from a welded fabrication. Typical alloys for this type of application are 1020, 8620, 8630 and 4140 steel.

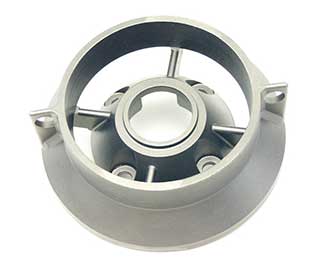

Housing, submersible pump, 303 or 316 stainless steel. Weight 9.0 lb. This casting illustrates the complex geometries available. Casting shown as-cast with no secondary machining.

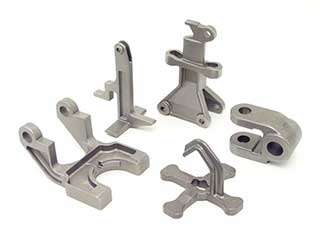

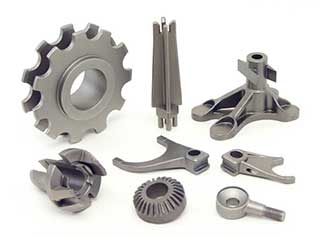

Various castings illustrating the complex geometries and near-net shaped capabilities of investment casting by Acra Cast. Alloys range from 1020 mild steel to low alloy steels, tool steel, and stainless steel.

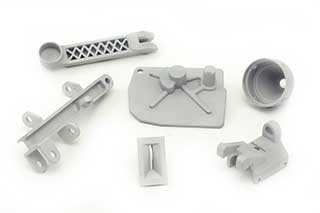

Various aluminum alloy castings. Typical alloys: 356, A380, 713.

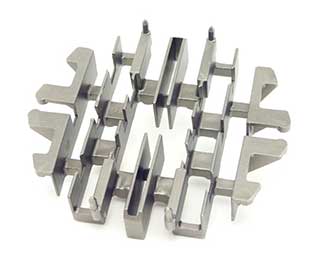

Stainless steel casting used in the food processing industry. Alloy: 309 stainless, Weight: 5.0 lbs. Pallet carries frozen pies down the line for water-jet slicing and packaging.

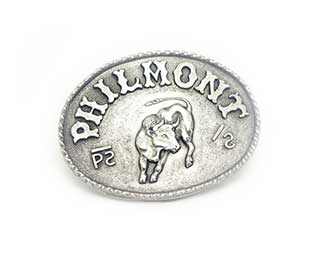

Belt Buckle. Alloy: 309 stainless, Polished with black highlights. Customer: Philmont High Adventure Base, Boy Scouts of America, Cimmaron, New Mexico.

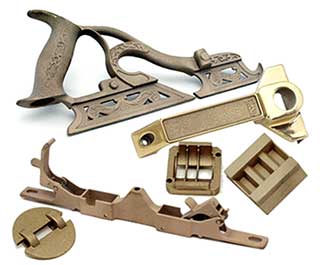

Silicon Bronze Castings, used in many applications: Reproduction hand tools, carburetors, power distribution and hardware.

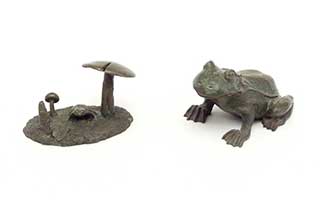

Artwork in Silicon Bronze. Acra Cast has served sculptors across the USA and even Europe by transforming their artist-provided wax models into high quality bronze castings.
